Light-Based Canopy System
An interactive miniature canopy system using Arduino with light-responsive technology.
Project Overview
The Light-Based Canopy project is a miniature adaptive canopy system that responds to ambient light using Arduino. Constructed from recycled cardboard, servo motors, LDR, and LED lighting, this prototype demonstrates smart architecture concepts and is ideal for STEM exhibitions, interactive showcases, and educational demonstrations of light-responsive systems.
Materials & Tools
- Arduino Uno microcontroller
- Light-dependent resistor (LDR)
- LCD display module
- LED lighting components
- Servo motor for canopy movement
- Breadboard & jumper wires
- Cardboard sheets
- USB cable & power bank
- Basic DIY tools (hot glue, scissor, ruler, marker)
Assembly Process
- Design the canopy structure using cardboard for the frame
- Mount the Servo motor, Light Dependent Resistor (LDR), and LED indicators
- Connect all electronic components and sensors to the Arduino using a breadboard
- Write and upload the Arduino sketch for ambient light detection and response
- Test the system by varying light intensity and observing the canopy's response
Project Photos

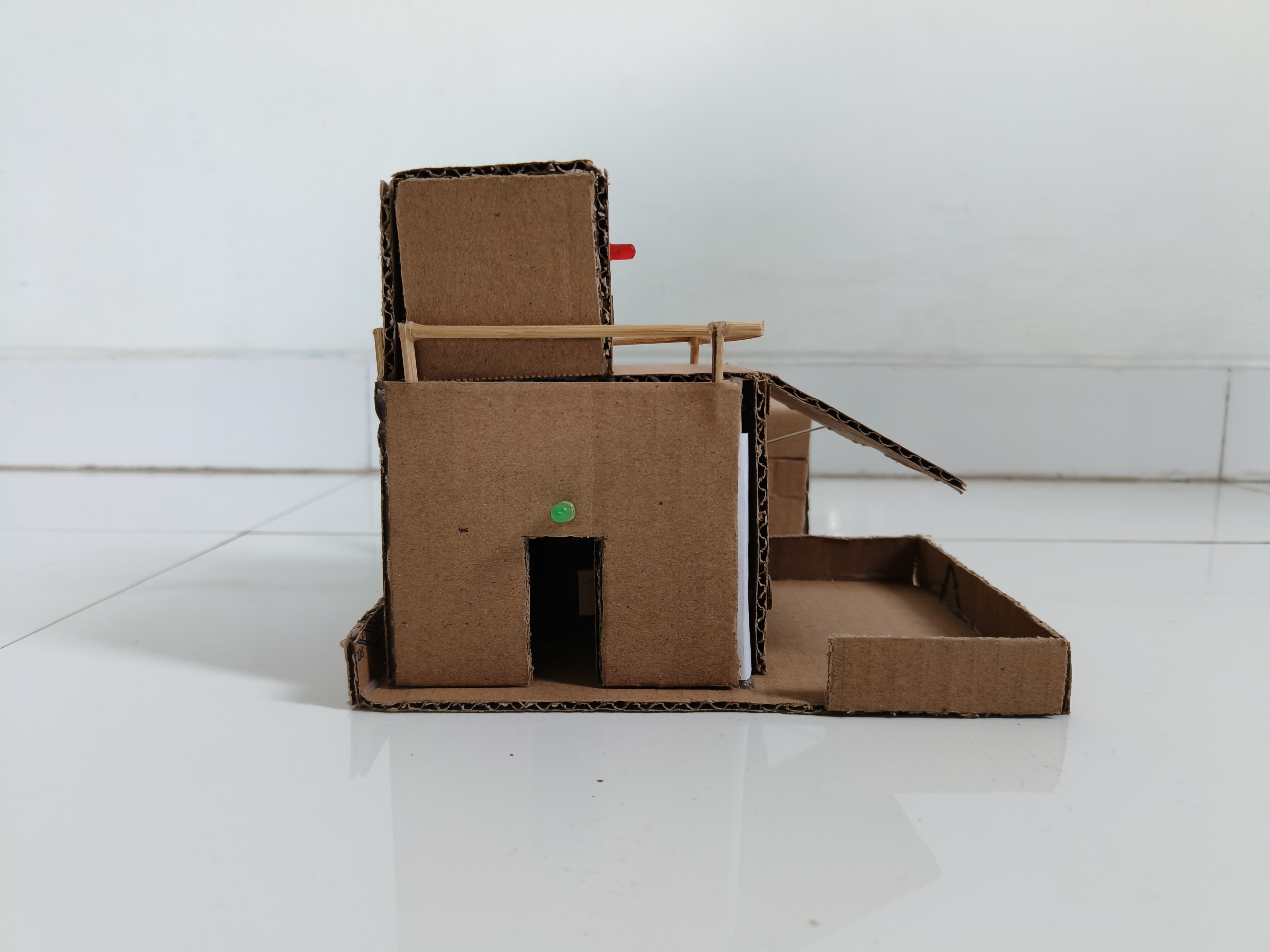

Front View
Back View

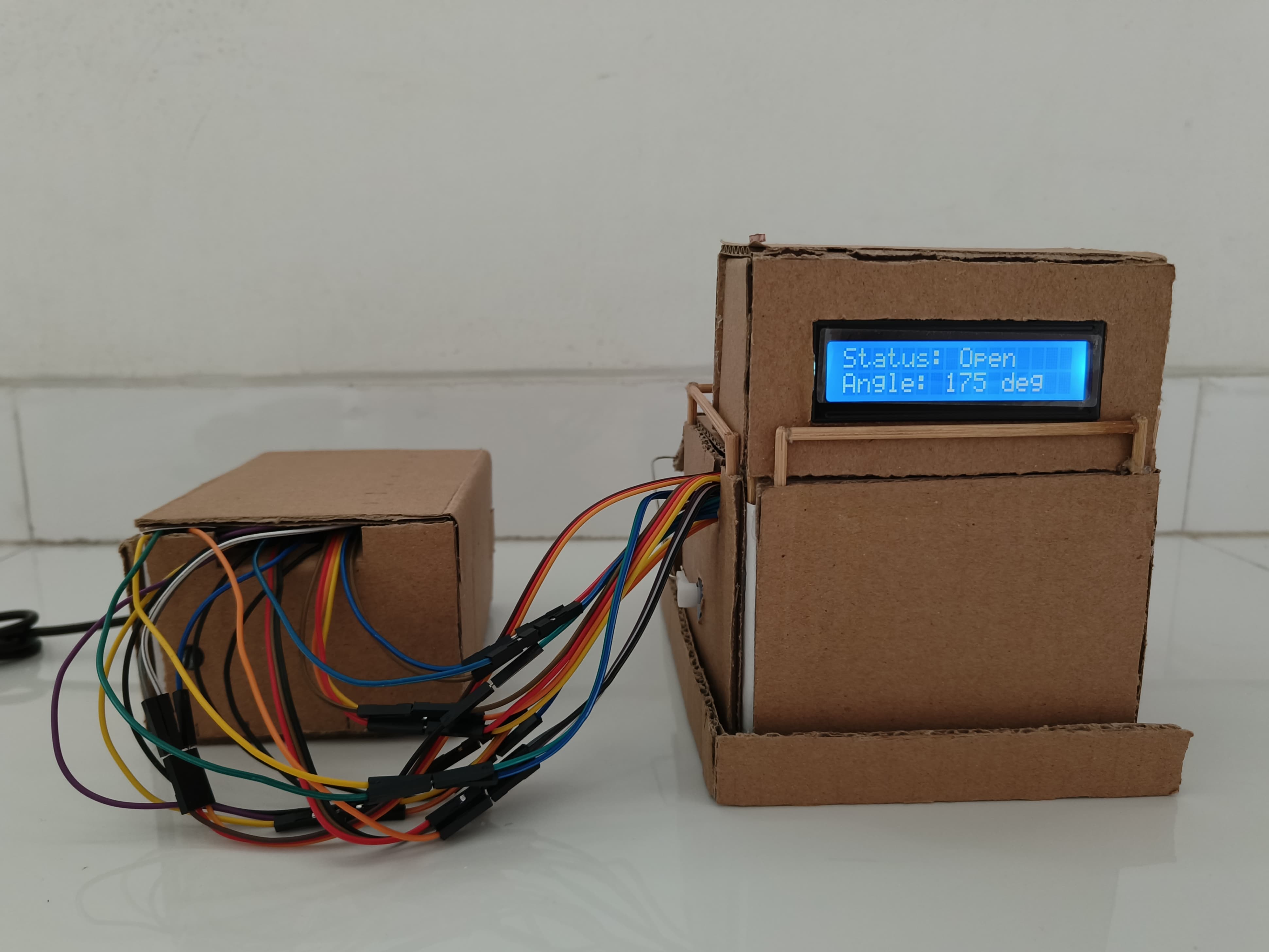

Side View

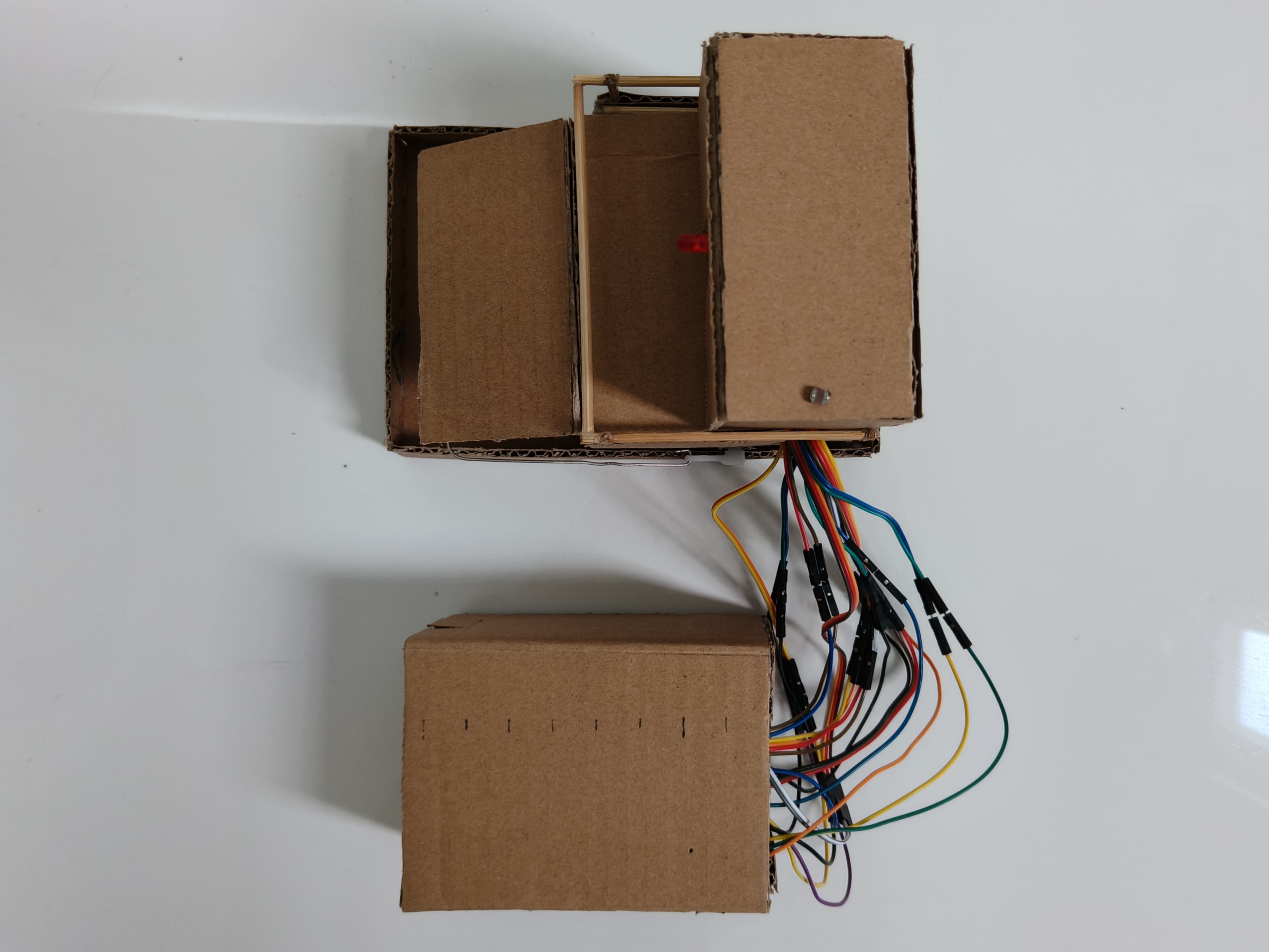

Top View
Video Demonstration
Watch the light-responsive canopy system in action, automatically adjusting to changing light conditions. (Video Coming Soon)
Circuit Schematics

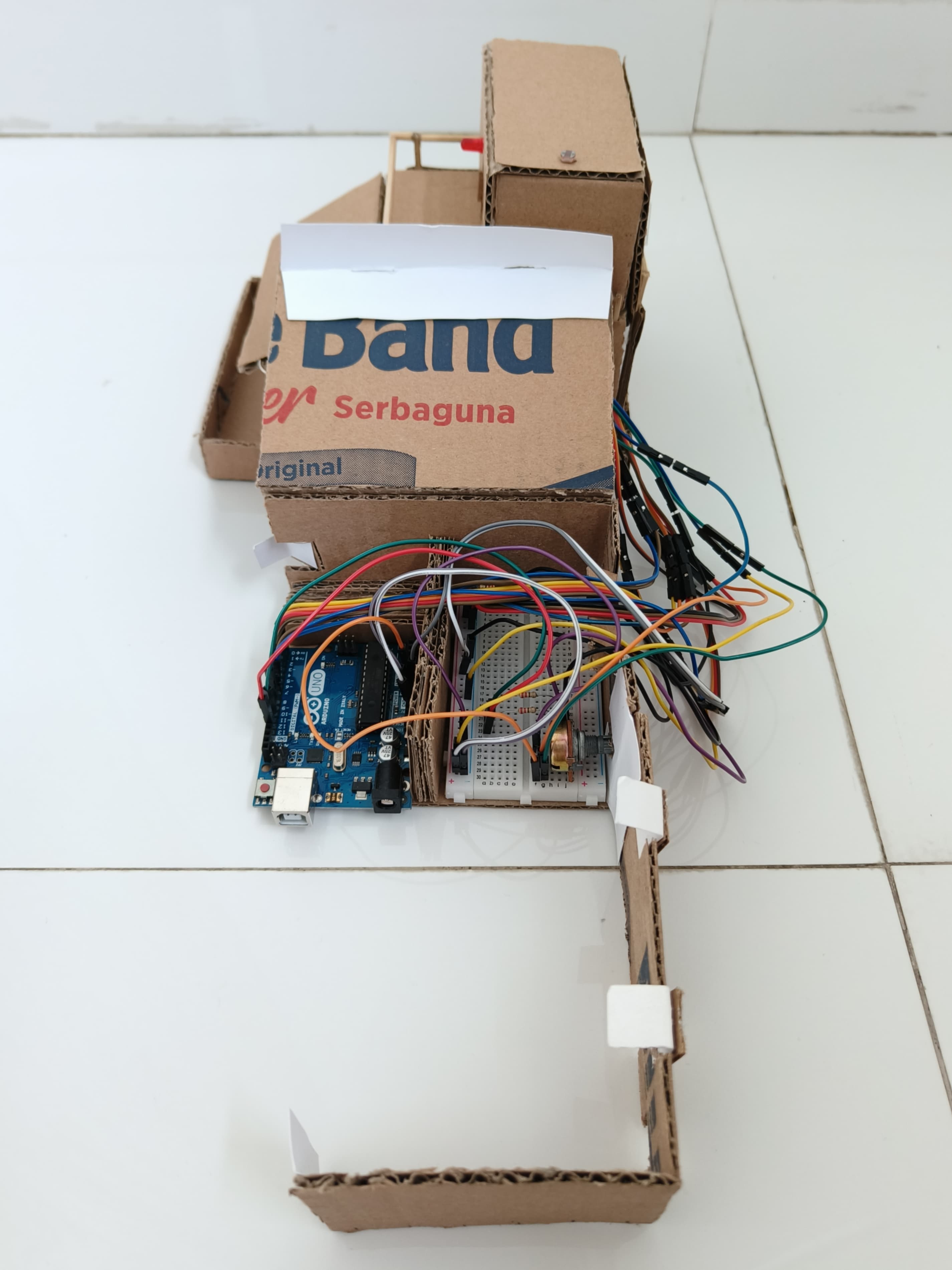

Wiring setup showing Electronic Box and Arduino connections

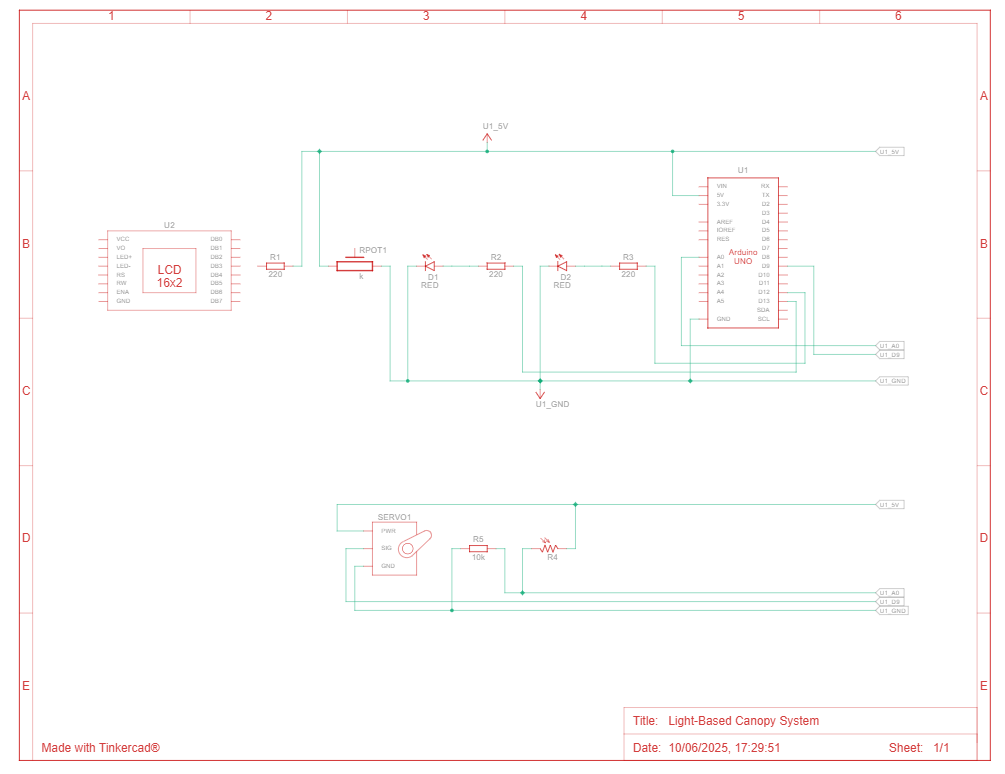

Complete circuit diagram for the light-responsive canopy system
Arduino Code
Download the Arduino sketch that controls the Light-Based Canopy system. You can upload this directly to your Arduino Uno and explore how the canopy responds to light.
